harbor高可用案例（共享存储目录）方案1

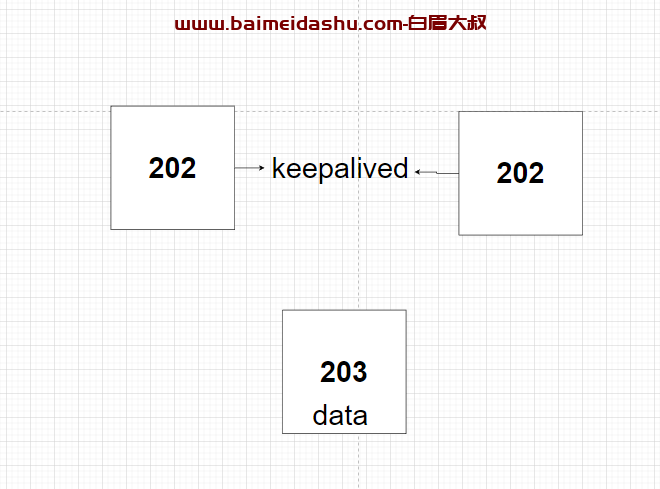

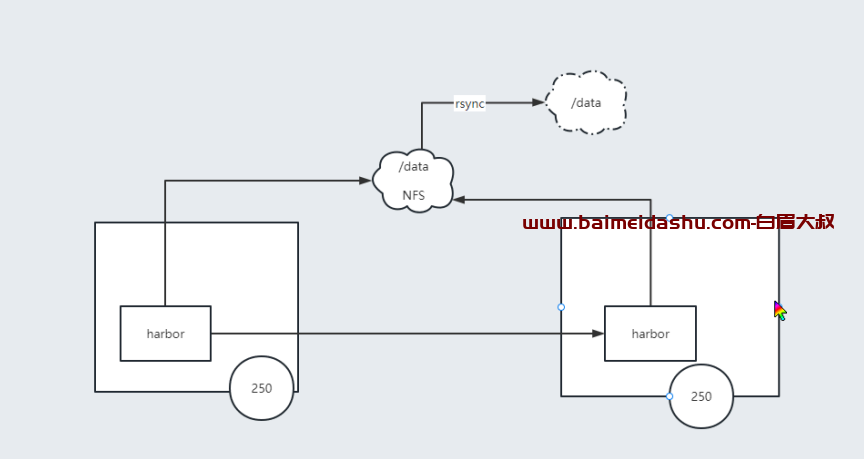

harbor高可用案例（共享存储目录）方案1 ： keepalive 高可用案例。 data 目录需要备份

harbor高可用方案2 ：两台 数据相互 复制 来同步（主从复制） ：连接

1.两个节点安装harbor

[root@centos201 softwares]# pwd
/baimei/softwares

[root@centos201 softwares]# scp -r harbor 10.0.0.202:`pwd`

[root@centos201 softwares]# scp -r /data 10.0.0.202:/



2.所有节点安装nfs服务

[root@centos201 ~]# yum -y install nfs-utils
[root@centos202 ~]# yum -y install nfs-utils
[root@centos203 ~]# yum -y install nfs-utils



3.配置nfs共享

[root@centos203 ~]# mkdir -pv /baimei/harbor



[root@centos203 ~]# cat > /etc/exports <<'EOF'
/baimei/harbor *(rw,no_root_squash)
EOF



4.配置nfs服务开机自启动

[root@centos203 ~]# systemctl enable --now nfs

5.服务端检查NFS暴露信息

exportfs  #

https://www.baimeidashu.com/10902.html

6.客户端节点手动挂载测试，完成数据的拷贝

mount -t nfs 10.0.0.203:/baimei/harbor /mnt/

 scp -r /data/* /mnt/

echo "mount -t nfs 10.0.0.203:/baimei/harbor /mnt/" >> /etc/rc.local

chmod +x /etc/rc.d/rc.local





[root@centos202 ~]# mount -t nfs 10.0.0.203:/baimei/harbor /mnt/
[root@centos202 ~]#
[root@centos202 ~]# echo "mount -t nfs 10.0.0.203:/baimei/harbor /mnt/" >> /etc/rc.local
[root@centos202 ~]#
[root@centos202 ~]# chmod +x /etc/rc.d/rc.local

7.harbor服务器修改harbor的配置文件 的 data 目录

vim harbor.yml

data_volume: /mnt



8.安装keepalived

[root@centos201 ~]# yum -y install keepalived
[root@centos202 ~]# yum -y install keepalived

9.配置keepalived，实现VIP漂移

201：

 cat > /etc/keepalived/keepalived.conf <<EOF
global_defs {
    router_id 201
}

vrrp_instance VI_1 {
    state MASTER
    interface ens33
    virtual_router_id 50
    priority 150
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        10.0.0.250
    }
}
EOF



systemctl enable --now keepalived



202：

cat > /etc/keepalived/keepalived.conf <<EOF
global_defs {
    router_id 202
}

vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    virtual_router_id 50
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        10.0.0.250
    }
}
EOF



systemctl enable --now keepalived

10.各节点验证vip是否漂移

systemctl stop keepalived

验证ip  是否 自动漂移



11.修改解析

10.0.0.250 harbor.baimei.com
