K8S RBAC基于服务账号授权案例 serviceaccount

K8S RBAC基于服务账号授权案例

serviceaccount:
	一般用于程序的用户名。

新建一个 serviceAccout 目录，在这里边操作

创建方式 -

响应式创建serviceAccounts

kubectl create serviceaccount baimei-linux86

kubectl get sa # 获取 serciAccounts 账号

kubectl delete sa baimei-linux86

声明式创建serviceaccount

cat 01-sa.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: baimei-linux86
  namespace: default

kubectl apply -f 01-sa.yaml

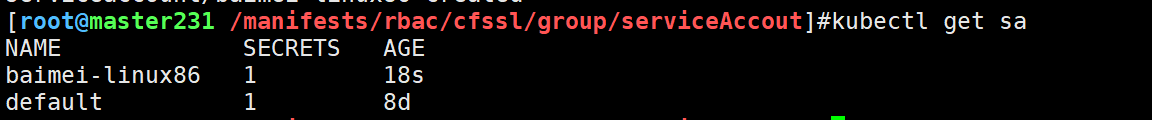

kubectl get sa

接下来我们用一个应用程序来演示一下：

- 授权容器中的Python程序对K8S API访问权限案例
授权容器中Python程序对K8S API访问权限步骤:
	- 创建Role;
	- 创建ServiceAccount;
	- 将ServiceAccount于Role绑定;
	- 为Pod指定自定义的SA;
	- 进入容器执行Python程序测试操作K8S API权限

基于服务账号授权案例

cat 01-sa-rabc.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: baimei-python
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: baimei-pod-reader
rules:
- apiGroups: [""]
  resources: ["pods"]
  verbs: ["get", "watch", "list"]
#- apiGroups: ["apps"]
#  resources: ["deployments"]
#  verbs: ["get", "watch", "list"]

---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: baimei-sa-to-role
subjects:
- kind: ServiceAccount
  name: baimei-python
roleRef:
  kind: Role
  name: baimei-pod-reader
  apiGroup: rbac.authorization.k8s.io

---

apiVersion: apps/v1
kind: Deployment
metadata:
  name: baimei-python3-sa
spec:
  replicas: 2
  selector:
    matchExpressions:
    - key: apps
      values:
      - "python"
      operator: In
  template:
    metadata:
      labels:
         apps: python
    spec:
      # 指定sa的名称，请确认该账号是有权限访问K8S集群的哟!
      serviceAccountName: baimei-python
      containers:
      - image: harbor.baimei.com/baimei-tools/python:3.9.16-alpine3.16
        name: c1
        command:
        - tail
        - -f
        - /etc/hosts

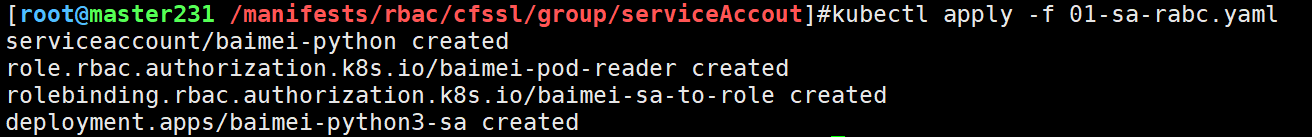

kubectl apply -f 01-sa-rabc.yaml

验证一下：

- 编写Python程序，进入到"python"Pod所在的容器执行以下Python代码即可!

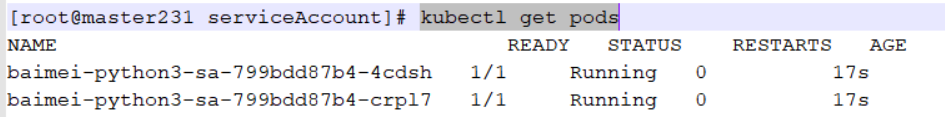

kubectl get pods

kubectl exec -it baimei-python3-sa-799bdd87b4-4cdsh -- sh

进入容器 下载 python依赖

pip install kubernetes -i https://pypi.tuna.tsinghua.edu.cn/simple/

创建文件;

cat > view-k8s.py <<'EOF'
from kubernetes import client, config

with open('/var/run/secrets/kubernetes.io/serviceaccount/token') as f:
     token = f.read()

configuration = client.Configuration()
configuration.host = "https://kubernetes"  # APISERVER地址
configuration.ssl_ca_cert="/var/run/secrets/kubernetes.io/serviceaccount/ca.crt"  # CA证书
configuration.verify_ssl = True   # 启用证书验证
configuration.api_key = {"authorization": "Bearer " + token}  # 指定Token字符串
client.Configuration.set_default(configuration)
apps_api = client.AppsV1Api()
core_api = client.CoreV1Api()
try:
  print("###### Deployment列表 ######")
  # 列出default命名空间所有deployment名称
  for dp in apps_api.list_namespaced_deployment("default").items:
    print(dp.metadata.name)
except:
  print("没有权限访问Deployment资源！")

try:
  # 列出default命名空间所有pod名称
  print("###### Pod列表 ######")
  for po in core_api.list_namespaced_pod("default").items:
    print(po.metadata.name)
except:
  print("没有权限访问Pod资源！")
EOF

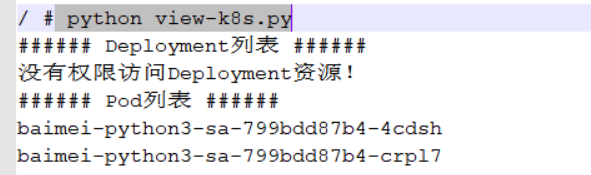

测试：

 python view-k8s.py
