kubesphere 部署node-exporter

1-下载镜像

prom/node-exporter:v1.7.0  # 9100

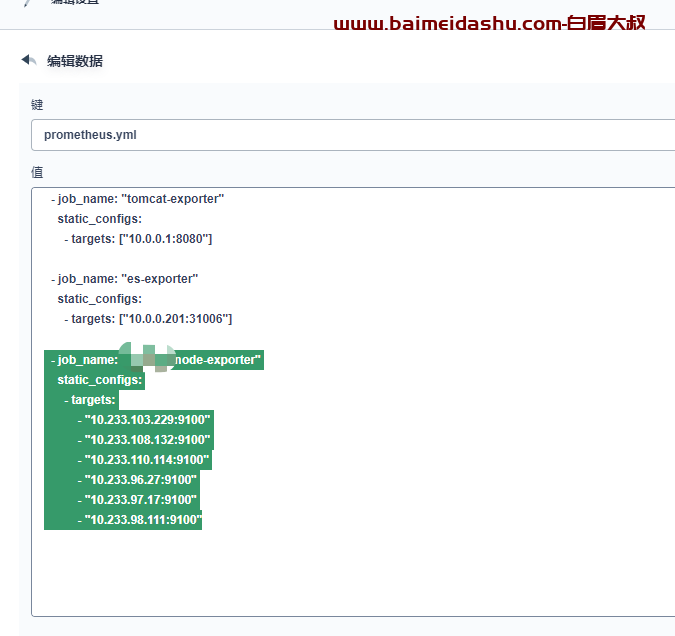

2- 配置 prometheus  监控 node

  - job_name: "-node-exporter"
    static_configs:
      - targets:
          - "10.233.103.229:9100"
          - "10.233.108.132:9100"
          - "10.233.110.114:9100"
          - "10.233.96.27:9100"
          - "10.233.97.17:9100"
          - "10.233.98.111:9100"

地址可以更换为 node 地址

  - job_name: "-node-exporter"
    static_configs:
      - targets:
          - "192.168.1.215:31017"
          - "192.168.1.212:31017"
          - "192.168.1.211:31017"
          - "192.168.1.210:31017"
          - "192.168.1.209:31017"
          - "192.168.1.208:31017"

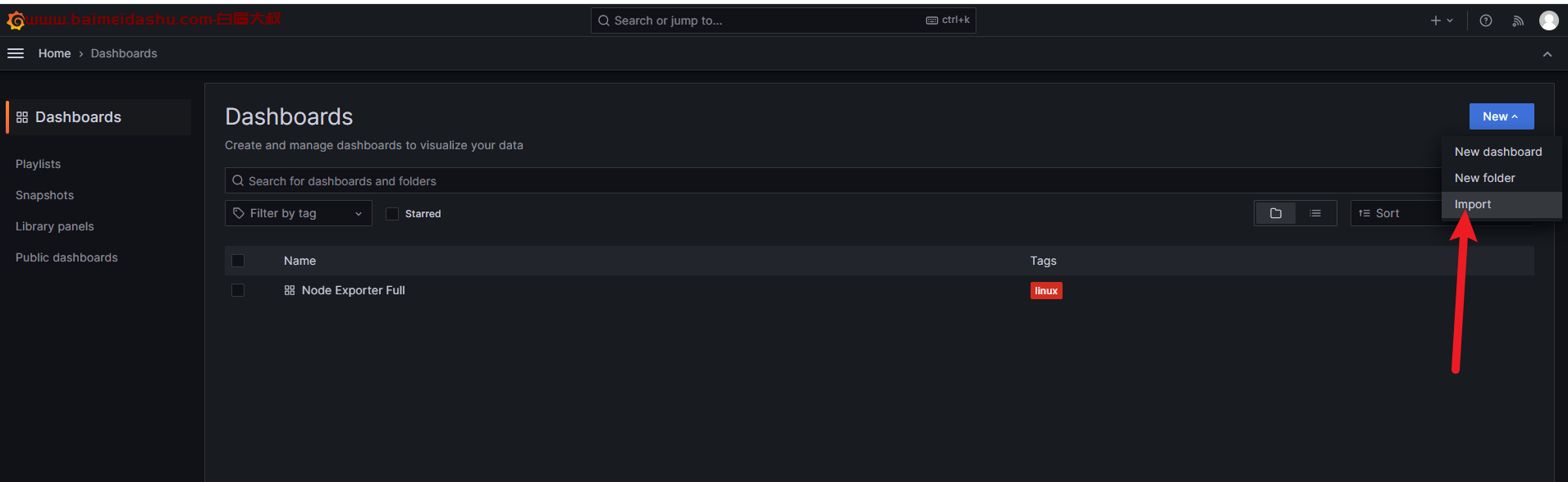

配置grafna

1860

https://grafana.com/grafana/dashboards/1860-node-exporter-full/

使用grafana展示数据-白眉大叔 (baimeidashu.com)
