1、资源创建方式

● 命令行
● YAML

命令行

kubectl create ns hello
kubectl delete ns hello

yaml

apiVersion: v1
kind: Namespace
metadata:
  name: hello

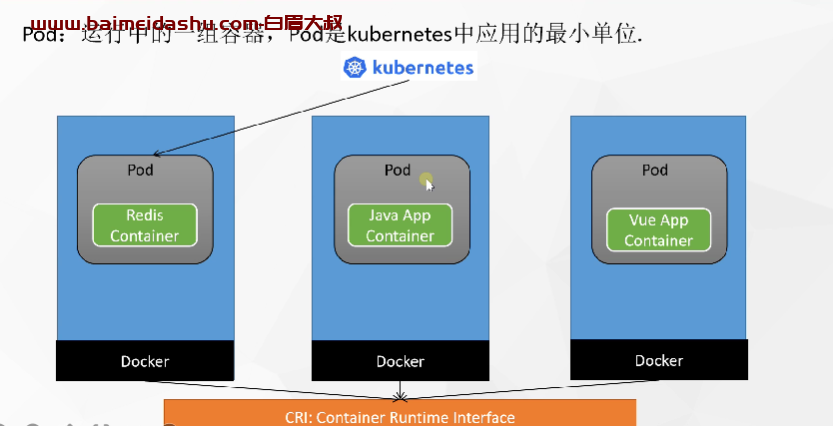

3-pod

命令创建

kubectl run mynginx --image=nginx

# 查看default名称空间的Pod
kubectl get pod
# 描述
kubectl describe pod 你自己的Pod名字
# 删除
kubectl delete pod Pod名字
# 查看Pod的运行日志
kubectl logs Pod名字

# 每个Pod - k8s都会分配一个ip
kubectl get pod -owide
# 使用Pod的ip+pod里面运行容器的端口
curl 192.168.169.136

# 集群中的任意一个机器以及任意的应用都能通过Pod分配的ip来访问这个Pod

yaml 方式

apiVersion: v1
kind: Pod
metadata:
  labels:
    run: mynginx
  name: mynginx
  namespace: default
spec:
  containers:
  - image: nginx
    name: mynginx

一个pod 多个应用

apiVersion: v1
kind: Pod
metadata:
  labels:
    run: myapp
  name: myapp
spec:
  containers:
  - image: nginx
    name: nginx
  - image: tomcat:8.5.68
    name: tomcat

界面化操作

进入容器

4-Deployment

控制Pod，使Pod拥有多副本，自愈，扩缩容等能力

# 清除所有Pod，比较下面两个命令有何不同效果？
kubectl run mynginx --image=nginx

kubectl create deployment mytomcat --image=tomcat:8.5.68
# 自愈能力

1、多副本

kubectl create deployment my-dep --image=nginx --replicas=3

ymal

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: my-dep
  name: my-dep
spec:
  replicas: 3
  selector:
    matchLabels:
      app: my-dep
  template:
    metadata:
      labels:
        app: my-dep
    spec:
      containers:
      - image: nginx
        name: nginx

2、扩缩容

kubectl scale --replicas=5 deployment/my-dep

修改 replicas

 kubectl get deploy

kubectl edit deployment my-dep

#修改 replicas

模拟故障，可以用 docker stop

4、滚动更新

kubectl set image deployment/my-dep nginx=nginx:1.16.1 --record
kubectl rollout status deployment/my-dep

nginx=nginx:1.16.1 容器名称=镜像+版本

或者修改yaml

# 修改 kubectl edit deployment/my-dep

5、版本回退

#历史记录
kubectl rollout history deployment/my-dep


#查看某个历史详情
kubectl rollout history deployment/my-dep --revision=2

#回滚(回到上次)
kubectl rollout undo deployment/my-dep

#回滚(回到指定版本)
kubectl rollout undo deployment/my-dep --to-revision=2

更多：
除了Deployment，k8s还有 StatefulSet 、DaemonSet 、Job 等类型资源。我们都称为 工作负载。
有状态应用使用 StatefulSet 部署，无状态应用使用 Deployment 部署

https://kubernetes.io/zh/docs/concepts/workloads/controllers/

5、Service
将一组 Pods 公开为网络服务的抽象方法。

#暴露Deploy
kubectl expose deployment my-dep --port=8000 --target-port=80

#使用标签检索Pod
kubectl get pod -l app=my-dep

yaml

apiVersion: v1
kind: Service
metadata:
  labels:
    app: my-dep
  name: my-dep
spec:
  selector:
    app: my-dep
  ports:
  - port: 8000
    protocol: TCP
    targetPort: 80

重要的是这个地方

selector: app: my-dep

1、ClusterIP

# 等同于没有--type的
kubectl expose deployment my-dep --port=8000 --target-port=80 --type=ClusterIP

yaml

apiVersion: v1
kind: Service
metadata:
  labels:
    app: my-dep
  name: my-dep
spec:
  ports:
  - port: 8000
    protocol: TCP
    targetPort: 80
  selector:
    app: my-dep
  type: ClusterIP

2、NodePort

kubectl expose deployment my-dep --port=8000 --target-port=80 --type=NodePort

yaml

apiVersion: v1
kind: Service
metadata:
  labels:
    app: my-dep
  name: my-dep
spec:
  ports:
  - port: 8000
    protocol: TCP
    targetPort: 80
  selector:
    app: my-dep
  type: NodePort

NodePort范围在 30000-32767 之间

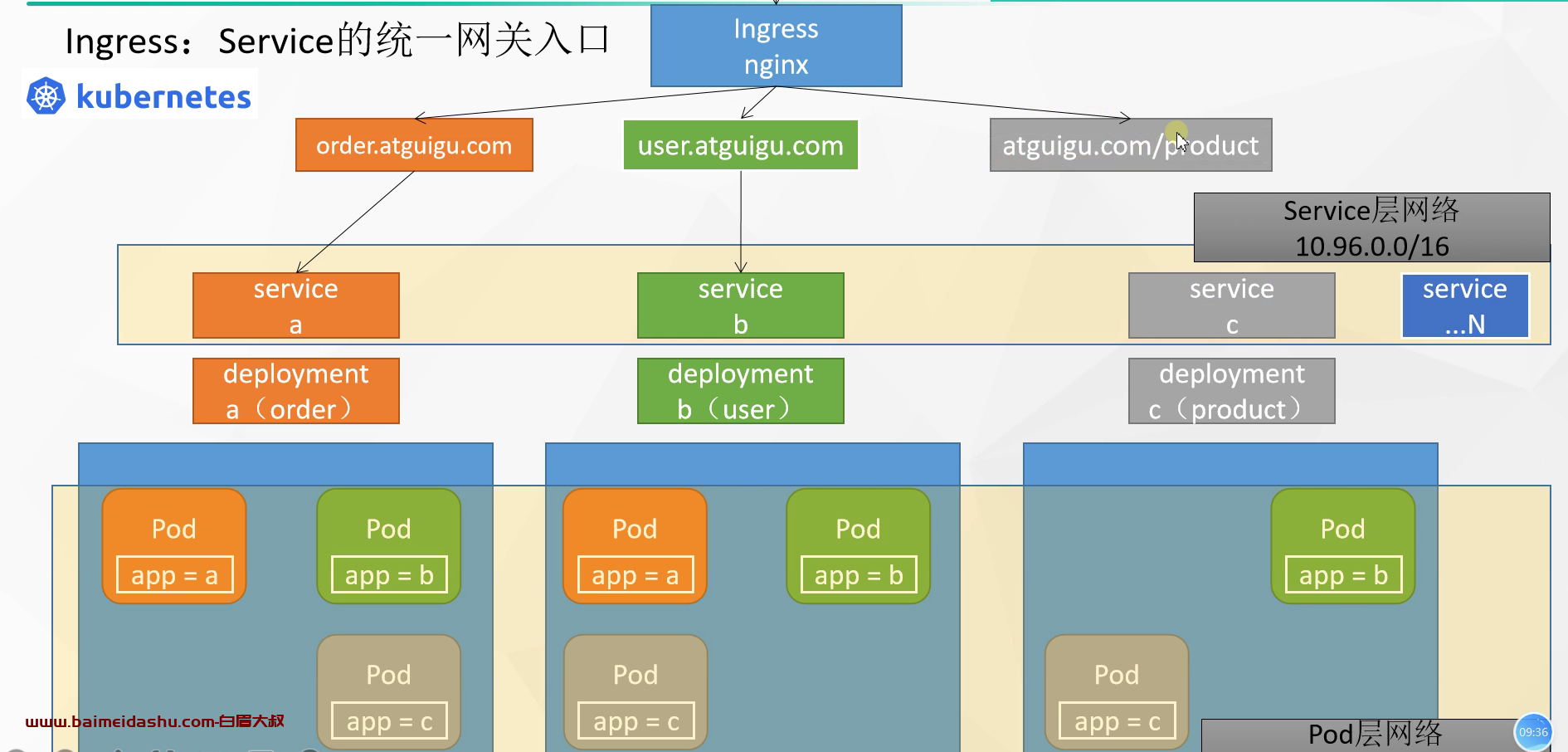

6、Ingress

1、安装

wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.47.0/deploy/static/provider/baremetal/deploy.yaml

#修改镜像
vi deploy.yaml
#将image的值改为如下值：
registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/ingress-nginx-controller:v0.46.0

# 检查安装的结果
kubectl get pod,svc -n ingress-nginx

# 最后别忘记把svc暴露的端口要放行

2、使用

官网地址：https://kubernetes.github.io/ingress-nginx/

就是nginx做的

http://10.0.0.11:31103/

测试环境

应用如下yaml，准备好测试环境

testingress.yml : 连接

kubectl apply -f testingress.yaml

1、域名访问

ingress-rule.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-host-bar
spec:
  ingressClassName: nginx
  rules:
  - host: "hello.atguigu.com"
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: hello-server
            port:
              number: 8000
  - host: "demo.atguigu.com"
    http:
      paths:
      - pathType: Prefix
        path: "/nginx"  # 把请求会转给下面的服务，下面的服务一定要能处理这个路径，不能处理就是404
        backend:
          service:
            name: nginx-demo  ## java，比如使用路径重写，去掉前缀nginx
            port:
              number: 8000

kubectl apply -f ingress-rule.yaml

查看ingress 服务

kubectl get ingress

问题： path: "/nginx" 与 path: "/" 为什么会有不同的效果？

hosts 配置

访问：

 kubectl get svc -A

 80:31103/TCP,443:31707/TCP

2、路径重写

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /$2
  name: ingress-host-bar
spec:
  ingressClassName: nginx
  rules:
  - host: "hello.atguigu.com"
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: hello-server
            port:
              number: 8000
  - host: "demo.atguigu.com"
    http:
      paths:
      - pathType: Prefix
        path: "/nginx(/|$)(.*)"  # 把请求会转给下面的服务，下面的服务一定要能处理这个路径，不能处理就是404
        backend:
          service:
            name: nginx-demo  ## java，比如使用路径重写，去掉前缀nginx
            port:
              number: 8000

3、流量限制

Kubernetes 核心实战-Ingress 限流 (kubesphere.io)

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-limit-rate
  annotations:
    nginx.ingress.kubernetes.io/limit-rps: "1"
spec:
  ingressClassName: nginx
  rules:
  - host: "haha.atguigu.com"
    http:
      paths:
      - pathType: Exact
        path: "/"
        backend:
          service:
            name: nginx-demo
            port:
              number: 8000

存储

Kubernetes 核心实战-存储介绍 (kubesphere.io)
