kubesphere 部署elastalert

k8s kubesphere 部署elastalert

是无状态的， 因为不要存储批量文件，可以用configmap

1- 镜像

docker pull anjia0532/elastalert-docker:v0.2.4



端口随便一个就可以 80

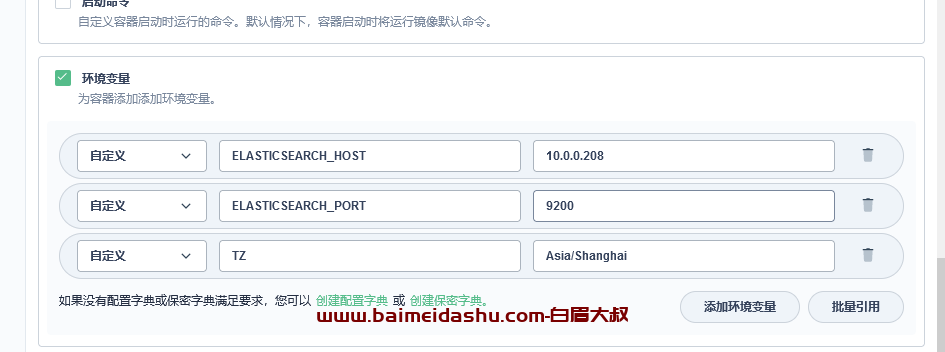

2- 设置环境变量

    environment:
      - ELASTICSEARCH_HOST=192.168.103.78
      - ELASTICSEARCH_PORT=9200
      - TZ=Asia/Shanghai
      - ELASTICSEARCH_USER="elastic"
      - ELASTICSEARCH_PASSWORD="123456"



2-

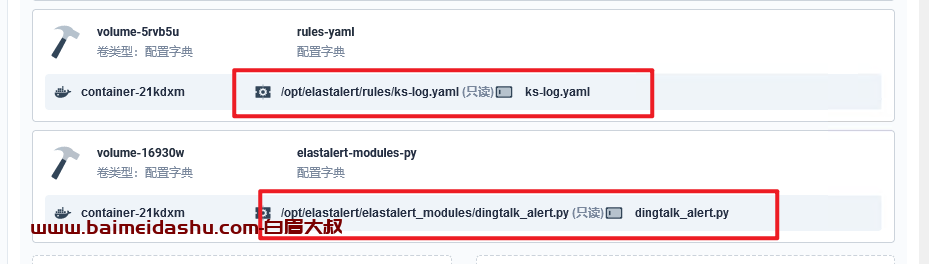

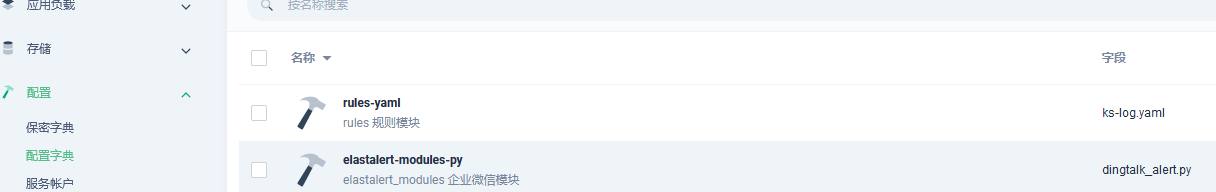

3- configmap

/opt/elastalert/elastalert_modules/dingtalk_alert.py

/opt/elastalert/rules/ks-log.yaml



实际内容：



es_host: 10.0.0.208
es_port: 9200
name: ks-log  #告警模板名
realert:              #2分钟内不重复告警
  minutes: 2
type: frequency
index: ks-logstash*    #要查询的索引的名称, ES中存在的索引
num_events: 1        #此参数特定于frequency类型，而且是触发警报时的阈值，周期内出现5次
timeframe:            #监控周期为1分钟
  minutes: 5
#- query_string:
#        query: "http_status: (304|400|404|500|501)"


filter:
- term:
    log: "error"


alert:
- "debug"
- "elastalert_modules.dingtalk_alert.DingTalkAlerter"

dingtalk_webhook: "https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key=8b47af31-e289-47e5-88eb-8923e01738fd"
dingtalk_msgtype: "text"



alert_text_type: alert_text_only
alert_text: |
  【测试环境】
  发生了 {} 次告警
  告警模块: {}
  告警ip: {}
  详细日志: {}
  测试字段1: {}
  测试字段2: {}
alert_text_args:
  - num_hits
  - type
  - remote_addr
  - log
  - kubernetes.container_name
  - kubernetes.namespace_name

这里白眉大叔本想自定义一个 企业微信的webhook，发现 接口跟 钉钉的一样，所以就拿钉钉的做测试了。



dingtalk_alert.py

#! /usr/bin/env python
# -*- coding: utf-8 -*-
"""
@author: xuyaoqiang
@contact: xuyaoqiang@gmail.com
@date: 2017-09-14 17:35
@version: 0.0.0
@license:
@copyright:

"""
import json
import requests
from elastalert.alerts import Alerter, DateTimeEncoder
from requests.exceptions import RequestException
from elastalert.util import EAException


class DingTalkAlerter(Alerter):

    required_options = frozenset(['dingtalk_webhook', 'dingtalk_msgtype'])

    def __init__(self, rule):
        super(DingTalkAlerter, self).__init__(rule)
        self.dingtalk_webhook_url = self.rule['dingtalk_webhook']
        self.dingtalk_msgtype = self.rule.get('dingtalk_msgtype', 'text')
        self.dingtalk_isAtAll = self.rule.get('dingtalk_isAtAll', False)
        self.digtalk_title = self.rule.get('dingtalk_title', '')

    def format_body(self, body):
        return body.encode('utf8')

    def alert(self, matches):
        headers = {
            "Content-Type": "application/json",
            "Accept": "application/json;charset=utf-8"
        }
        body = self.create_alert_body(matches)
        payload = {
            "msgtype": self.dingtalk_msgtype,
            "text": {
                "content": body
            },
            "at": {
                "isAtAll":False
            }
        }
        try:
            response = requests.post(self.dingtalk_webhook_url,
                        data=json.dumps(payload, cls=DateTimeEncoder),
                        headers=headers)
            response.raise_for_status()
        except RequestException as e:
            raise EAException("Error request to Dingtalk: {0}".format(str(e)))

    def get_info(self):
        return {
            "type": "dingtalk",
            "dingtalk_webhook": self.dingtalk_webhook_url
        }
        pass

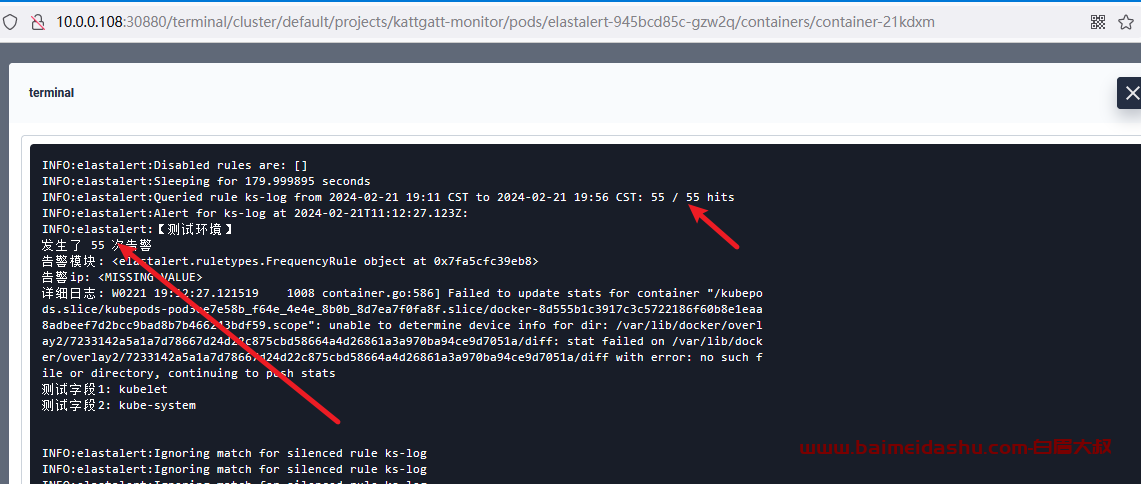

测试：

进入终端：

elastalert --verbose --rule ./rules/ks-log.yaml

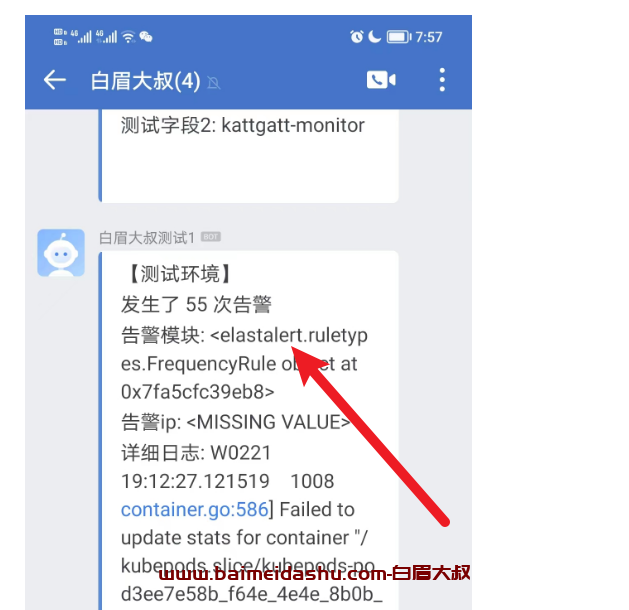

这时候会在 群里收到通知

docker -compos

ersion: '2.2'
services:
  elastalert:
    image: anjia0532/elastalert-docker
    container_name: elastalert
    environment:
      - ELASTICSEARCH_HOST=192.168.103.78
      - ELASTICSEARCH_PORT=9200
      - TZ=Asia/Shanghai
      - ELASTICSEARCH_USER="elastic"
      - ELASTICSEARCH_PASSWORD="123456"
    volumes:
      - /data/elastalert/rules:/opt/elastalert/rules
      -/data/elastalert/elastalert_modules:/opt/elastalert/elastalert_modules





ks-log.yaml



dingtalk_alert.py





elastalert --verbose --rule ./rules/ks-log.yaml
