docker 部署ClickHouse

#1 创建部署目录和docker-compose.yaml

mkdir -p /opt/clickhouse/etc/clickhouse-server/{config.d,users.d}

cd /opt/clickhouse

2准备：docker-compose.yaml

cat <<-EOF > docker-compose.yaml
services:
  clickhouse:
    image: registry.cn-shenzhen.aliyuncs.com/starsl/clickhouse-server:23.4
    container_name: clickhouse
    hostname: clickhouse
    volumes:
      - /opt/clickhouse/logs:/var/log/clickhouse-server
      - /opt/clickhouse/data:/var/lib/clickhouse
      - /opt/clickhouse/etc/clickhouse-server/config.d/config.xml:/etc/clickhouse-server/config.d/config.xml
      - /opt/clickhouse/etc/clickhouse-server/users.d/users.xml:/etc/clickhouse-server/users.d/users.xml
      - /usr/share/zoneinfo/PRC:/etc/localtime
    ports:
      - 8123:8123
      - 9000:9000
EOF

3准备配置文件/config.xml

<clickhouse replace="true">
    <logger>
        <level>debug</level>
        <log>/var/log/clickhouse-server/clickhouse-server.log</log>
        <errorlog>/var/log/clickhouse-server/clickhouse-server.err.log</errorlog>
        <size>1000M</size>
        <count>3</count>
    </logger>
    <display_name>ch_accesslog</display_name>
    <listen_host>0.0.0.0</listen_host>
    <http_port>8123</http_port>
    <tcp_port>9000</tcp_port>
    <user_directories>
        <users_xml>
            <path>users.xml</path>
        </users_xml>
        <local_directory>
            <path>/var/lib/clickhouse/access/</path>
        </local_directory>
    </user_directories>
</clickhouse>

4- 准备 users.xml

# 生成密码(返回的第一行是明文，第二行是密文)

PASSWORD=$(base64 < /dev/urandom | head -c8); echo "$PASSWORD"; echo -n "$PASSWORD" | sha256sum | tr -d '-'

kbcIc48j
1f8d0b27fa60a6aa73e05b8a0c8e348619f85ce765f7864e9853c1613377abce

然后：

vi /opt/clickhouse/etc/clickhouse-server/users.d/users.xml

如下：

<?xml version="1.0"?>
<clickhouse replace="true">
    <profiles>
        <default>
            <max_memory_usage>10000000000</max_memory_usage>
            <use_uncompressed_cache>0</use_uncompressed_cache>
            <load_balancing>in_order</load_balancing>
            <log_queries>1</log_queries>
        </default>
    </profiles>
    <users>
        <default>
            <password remove='1' />
            <password_sha256_hex>填写生成的密码密文</password_sha256_hex>
            <access_management>1</access_management>
            <profile>default</profile>
            <networks>
                <ip>::/0</ip>
            </networks>
            <quota>default</quota>
            <access_management>1</access_management>
            <named_collection_control>1</named_collection_control>
            <show_named_collections>1</show_named_collections>
            <show_named_collections_secrets>1</show_named_collections_secrets>
        </default>
    </users>
    <quotas>
        <default>
            <interval>
                <duration>3600</duration>
                <queries>0</queries>
                <errors>0</errors>
                <result_rows>0</result_rows>
                <read_rows>0</read_rows>
                <execution_time>0</execution_time>
            </interval>
        </default>
    </quotas>
</clickhouse>

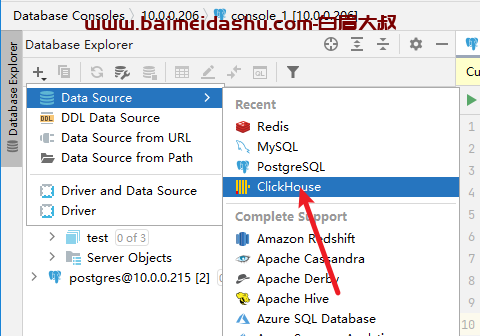

5- 启动 +客户端连接

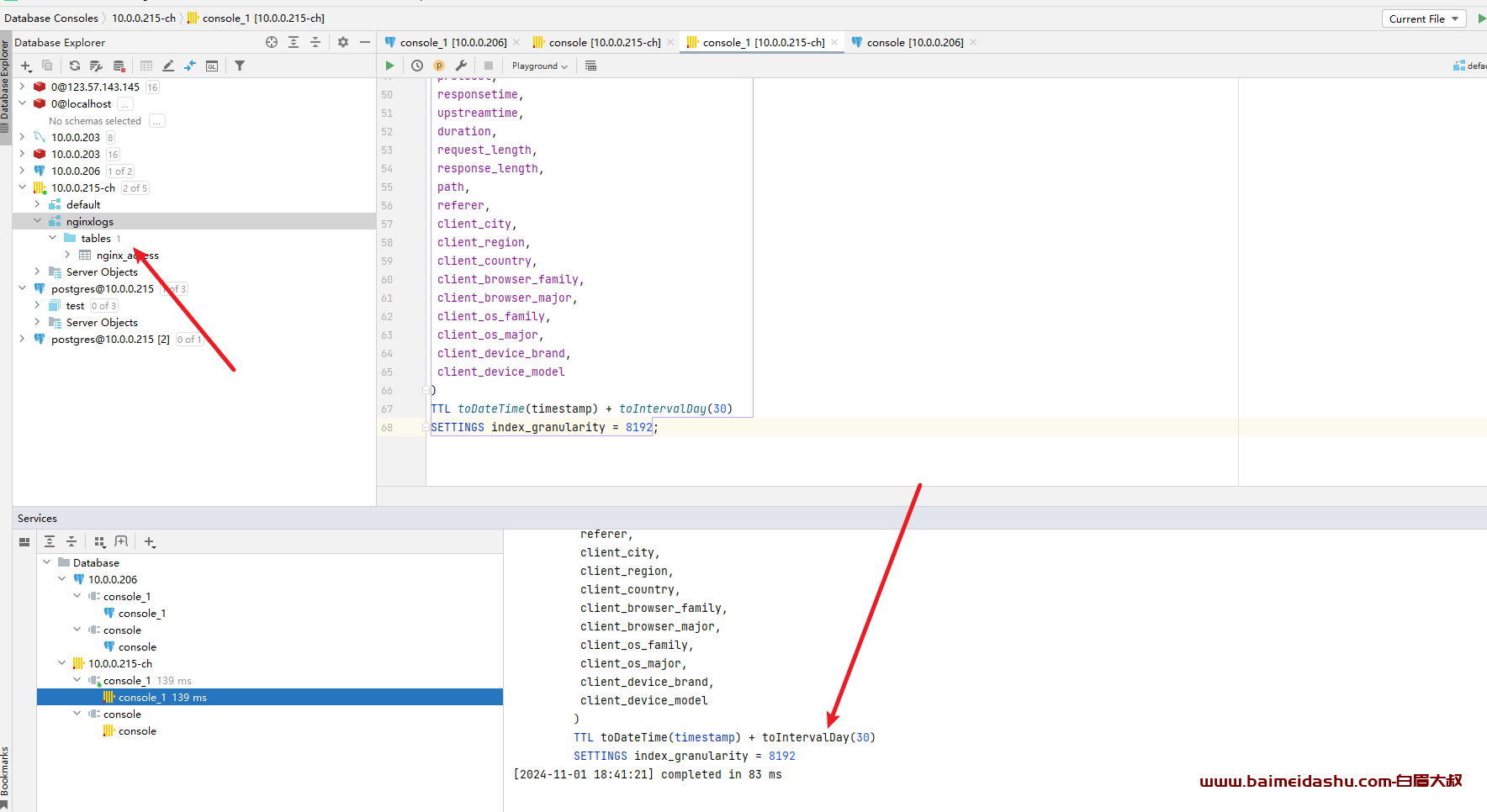

6-创建数据库与表

库：

CREATE DATABASE IF NOT EXISTS nginxlogs ENGINE=Atomic;

表：

CREATE TABLE nginxlogs.nginx_access
(
    `timestamp` DateTime64(3, 'Asia/Shanghai'),
    `server_ip` String,
    `domain` String,
    `request_method` String,
    `status` Int32,
    `top_path` String,
    `path` String,
    `query` String,
    `protocol` String,
    `referer` String,
    `upstreamhost` String,
    `responsetime` Float32,
    `upstreamtime` Float32,
    `duration` Float32,
    `request_length` Int32,
    `response_length` Int32,
    `client_ip` String,
    `client_latitude` Float32,
    `client_longitude` Float32,
    `remote_user` String,
    `remote_ip` String,
    `xff` String,
    `client_city` String,
    `client_region` String,
    `client_country` String,
    `http_user_agent` String,
    `client_browser_family` String,
    `client_browser_major` String,
    `client_os_family` String,
    `client_os_major` String,
    `client_device_brand` String,
    `client_device_model` String,
    `createdtime` DateTime64(3, 'Asia/Shanghai')
)
ENGINE = MergeTree
PARTITION BY toYYYYMMDD(timestamp)
PRIMARY KEY (timestamp,
 server_ip,
 status,
 top_path,
 domain,
 upstreamhost,
 client_ip,
 remote_user,
 request_method,
 protocol,
 responsetime,
 upstreamtime,
 duration,
 request_length,
 response_length,
 path,
 referer,
 client_city,
 client_region,
 client_country,
 client_browser_family,
 client_browser_major,
 client_os_family,
 client_os_major,
 client_device_brand,
 client_device_model
)
TTL toDateTime(timestamp) + toIntervalDay(30)
SETTINGS index_granularity = 8192;

到此为止，我们 click house 已经完成安装

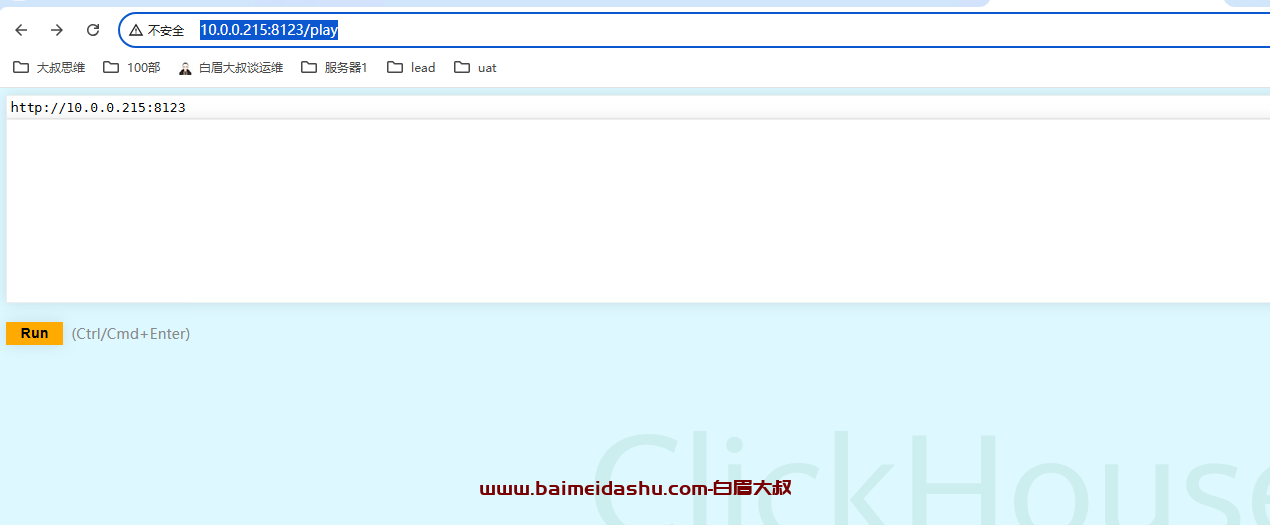

http://10.0.0.215:8123/play
