ansible roles 安装负载均衡

ansible roles 安装负载均衡业务

步骤：

首先在 lb01 上 配置负载均衡

参考  Nginx 负载均衡设置

[root@m01 /etc/ansible/roles/lbfunc/tasks]#cat main.yml
- name: copy lb_proxy.conf
  copy:
    src: lb_proxy.conf
    dest: /etc/nginx/conf.d/lb_proxy.conf
  notify: Restart nginx sevice

- name: copy proxy_params
  copy:
    src: proxy_params
    dest: /etc/nginx/proxy_params
  notify: Restart nginx sevice

[root@m01 /etc/ansible/roles/lbfunc/handlers]#cat main.yml
- name: Restart nginx sevice
  systemd:
    name: nginx
    state: restarted

步骤：

ansible-galaxy init lbfunc

rm -rf defaults meta README.md

负载均衡配置文件： lb_proxy.conf

upstream blog {
        server 172.16.1.7:80;
        server 172.16.1.8:80;
}

server {
        listen 80;
        server_name wordpress.baimei.com;

        location / {
                proxy_pass http://blog;
                include proxy_params;
        }
}

server {
        listen 80;
        server_name zh.baimei.com;

        location / {
                proxy_pass http://blog;
                include proxy_params;
        }
}

proxy_params 文件内容：

[root@m01 ~/ansible/proxy]#cat proxy_params
proxy_set_header Host $http_host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

proxy_connect_timeout 30;
proxy_send_timeout 60;
proxy_read_timeout 60;

proxy_buffering on;
proxy_buffer_size 32k;
proxy_buffers 4 128k;

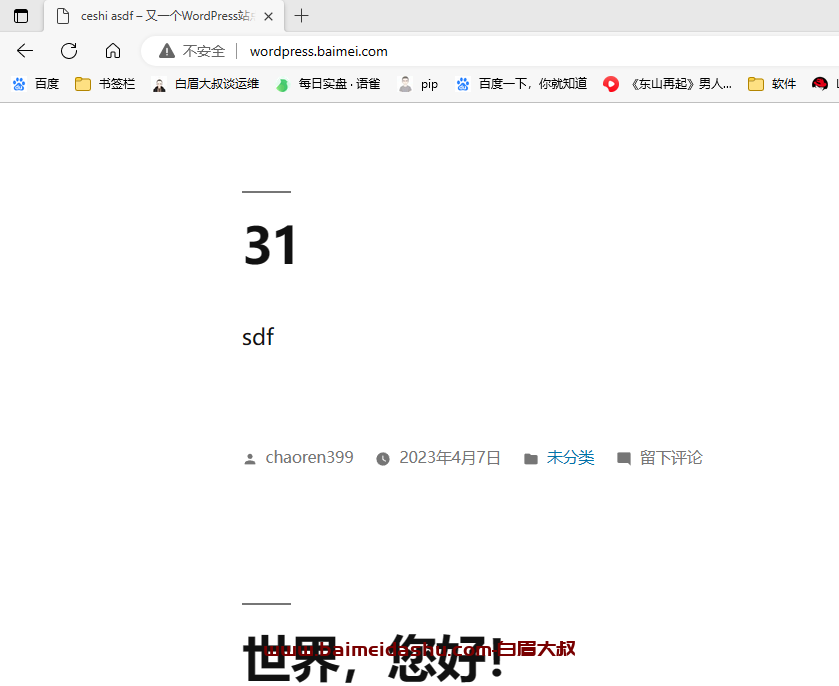

测试：

一定把本机的 hosts  地址改一下 ： 10.0.0.4

关闭一个 web01

测试成功
